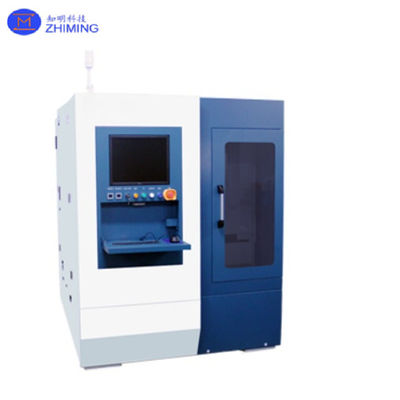

SiC Ingot Cutting Machine For 4 Inch 6 Inch 8 Inch 10 Inch SiC Cutting Speed 0.3 Mm/Min Average
Product Details:
| Place of Origin: | China |
| Brand Name: | ZMSH |
| Model Number: | SiC Ingot Cutting Machine |
Payment & Shipping Terms:
| Payment Terms: | T/T |
|---|
|
Detail Information |
|||
| Crystal Size Range: | 4, 6, 8, And 10-inch SiC | Average Cutting Speed: | 0.3 Mm/min |
|---|---|---|---|
| Max. Cutting Force: | 0–110N (0.25mm Wire With 45N Tensile Force) | Tensile Strength Of Wire: | ≥0.18mm |
| Surface Finish: | Ra ≤ 0.3μm | Machine Size (L × W × H): | 2500 × 2300 × 2500 Mm |
| Highlight: | 10 inch SiC Ingot Cutting Machine,SiC Ingot Cutting Machine |
||
Product Description
SiC Ingot Cutting Machine for 4, 6, 8, and 10-inch SiC Cutting Speed: 0.3 mm/min (average)
SiC Wire Saw Cutting Machine Abstract
The SiC Wire Saw Cutting Machine by ZMSH is designed for precision cutting of silicon carbide (SiC) materials. It efficiently handles various crystal sizes, offering high cutting speeds and accuracy. This machine is ideal for SiC boule cutting, suitable for 6-inch, 8-inch, and 10-inch SiC crystals. The advanced wire saw technology ensures smooth, high-quality surface finishes and minimizes material wastage. This machine is a key asset for semiconductor manufacturers, particularly in the production of SiC wafers for power devices and other high-tech applications.
SiC Wire Saw Cutting Machine Properties
- Crystal Size Range: 4, 6, 8, and 10-inch SiC
- Cutting Speed: 0.3 mm/min (average)
- Cutting Steps: ≤30°
- Max. Cutting Force: 0–110N (0.25mm wire with 45N tensile force)
- Tensile Strength of Wire: ≥0.18mm
- Surface Finish: Ra ≤ 0.3μm
- Machine Size: 2500 × 2300 × 2500 mm (L × W × H)
- Machine Power: 50 kW
- Cutting Error Rate: ≤1% (excluding material and maintenance-related factors)
- Equipment Weight: ≤5.5t
- Noise Level: ≤80 dB
SiC Wire Saw Cutting Machine Chart: Technical Specifications
| Parameter | Value |
|---|---|
| Crystal Size Range | 4, 6, 8, and 10-inch SiC |
| Average Cutting Speed | 0.3 mm/min |
| Max. Cutting Force | 0–110N (0.25mm wire with 45N tensile force) |
| Tensile Strength of Wire | ≥0.18mm |
| Surface Finish | Ra ≤ 0.3μm |
| Machine Size (L × W × H) | 2500 × 2300 × 2500 mm |
| Machine Power | 50 kW |
| Cutting Error Rate | ≤1% (excluding external factors) |
| Equipment Weight | ≤5.5t |
| Noise Level | ≤80 dB |
SiC Wire Saw Cutting Machine ZMSH Services
At ZMSH, we offer a comprehensive range of services to ensure the seamless operation and performance of our SiC Wire Saw Cutting Machines.
- Customization: Tailored solutions to meet specific production requirements, including custom crystal sizes and cutting parameters.
- On-Site Installation: Expert installation and setup by our qualified engineers, ensuring the machine operates at peak efficiency.
- Training: Comprehensive training for your staff on machine operation, maintenance, and troubleshooting.
- After-Sales Support: Full after-sales service including maintenance, repairs, and technical support to ensure continuous operation.
- Upgrades: We offer software and hardware upgrades as technology evolves, ensuring your machine remains competitive in the industry.
