Cr Al₂O₃ Ruby Rod Sapphire Laser Single Crystal Optical Rod Customized Size Safety Package
Product Details:
| Place of Origin: | China |
| Brand Name: | ZMSH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25 |
|---|---|
| Delivery Time: | 4-6weeks |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Material: | Cr: Al2O3 | Doped: | Cr |
|---|---|---|---|
| Color: | Red | Length: | Customizable Based |
| Growth Method: | CZ | Application: | Laser Device Or Gem |
| Highlight: | Cr Al₂O₃ Ruby Rod,Customized size Ruby Rod,Sapphire Laser Ruby Rod |
||
Product Description
Abstract
The Ruby Rod is a cylindrical component crafted from synthetic ruby (Cr:Al₂O₃), a chromium-doped aluminum oxide crystal. Renowned for its exceptional hardness (Mohs scale 9), high melting point (2050°C), and superior optical properties, it is widely utilized in industrial, scientific, and medical fields. Synthetic ruby is produced via methods like the Verneuil (flame fusion) or Czochralski processes, ensuring controlled purity and uniformity for specialized applications.
Historically, ruby rods gained prominence in 1960 as the core medium for the first laser, and today, they remain critical in precision engineering and advanced research.
Company Introduction
Our company, ZMSH, has been a prominent player in the semiconductor industry for over a decade, boasting a professional team of factory experts and sales personnel. We specialize in providing customized sapphire wafer solutions, offering both tailored designs and OEM services to meet diverse client needs. At ZMSH, we are committed to delivering products that excel in both price and quality, ensuring customer satisfaction at every stage. We invite you to contact us for more information or to discuss your specific requirements.
Ruby Rod Tecnical Parameters
| Parameter | Value/Description |
|---|---|
| Hardness | Mohs 9 (second only to diamond) |
| Melting Point | 2050°C |
| Refractive Index | 1.76–1.78 |
| Fluorescence | 694.3 nm (R1 line under UV excitation) |
| Transparency Range | 250–5500 nm (UV to near-infrared) |
| Typical Dimensions | Diameter: 0.5–2 cm; Length: 4–16 cm |
Laser Performance:
- Pulse energy: >10 J
- Peak power: >10 kW
- Efficiency: ~0.1% (lower than YAG lasers but offers stability)
Ruby Rod Applications
-
Laser Technology
- Medical: Used in dermatology for tattoo removal, vascular lesion treatment, and ophthalmology for retinal procedures.
- Industrial: Enables precision cutting, welding, and micro-drilling in aerospace and electronics manufacturing.
-
Industrial Components
- Bearings & Seals: High wear resistance makes it ideal for luxury watch mechanisms.
- Guiding Tools: Ruby nozzles and wire guides in automated winding machines ensure minimal friction and damage to fine wires.
-
High-Pressure Research
Acts as a fluorescence pressure marker in diamond anvil cell (DAC) experiments, measuring pressures exceeding 100 GPa via R1 peak shifts. -
Emerging Fields
- Quantum Computing: Ruby rods serve as quantum bit carriers at cryogenic temperatures.
- Biotechnology: The RUBY system in genetic engineering visualizes gene expression without chemical markers.

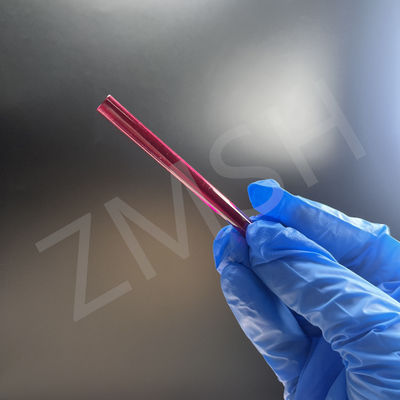

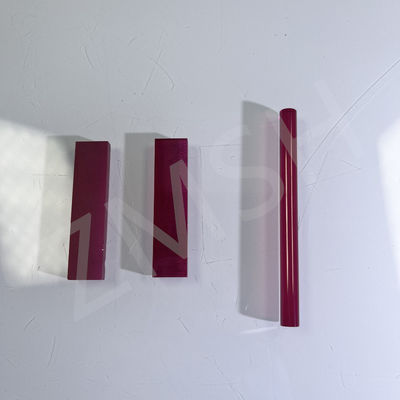

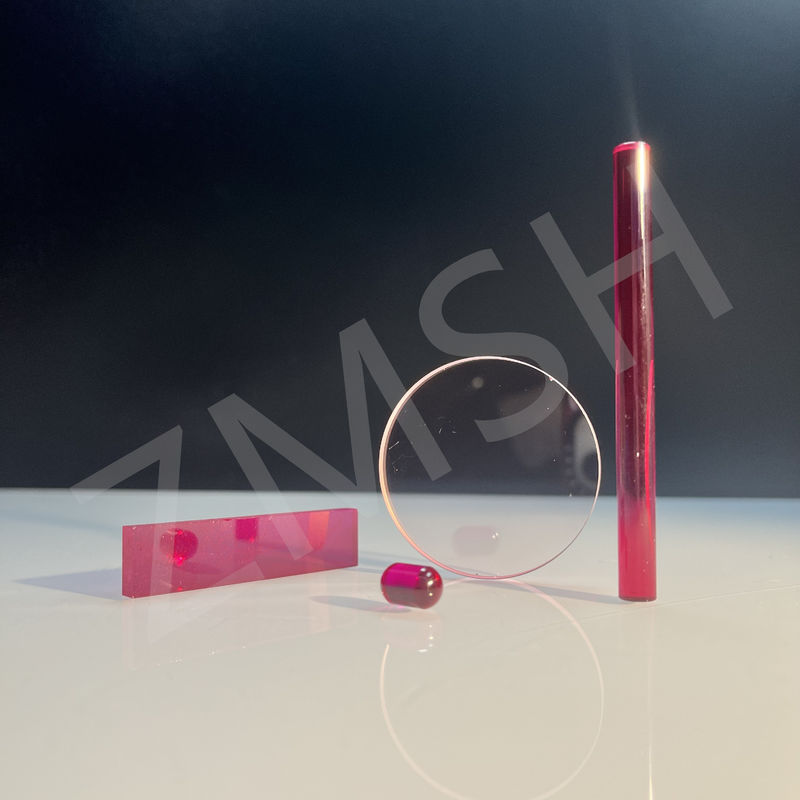

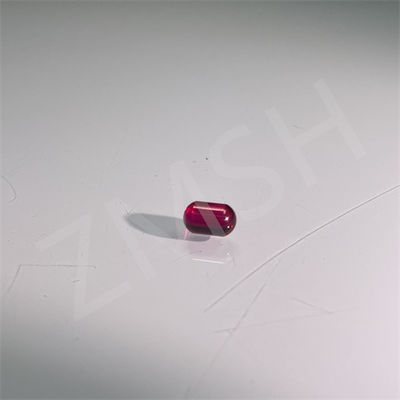

Product Display - ZMSH
Ruby Rod FAQ
Q: Why is chromium added to ruby rods?
A: Chromium ions (Cr³⁺) create a three-level energy system, enabling laser emission at 694.3 nm and fluorescence-based pressure sensing
Q: How durable are ruby rods?
A: With high chemical stability, they last decades in industrial settings, though prolonged exposure to >50°C may reduce fluorescence efficiency.
Q: How does synthetic ruby differ from natural ruby?
A: Synthetic variants offer controlled purity and lower costs, while natural rubies (e.g., Myanmar Mogok) are rare and prized for collectible value.
